#include <src/mdns/mdns.hpp>

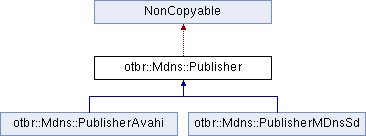

Inheritance diagram for otbr::Mdns::Publisher:

Classes
struct	DiscoveredHostInfo

struct	DiscoveredInstanceInfo

class	HostRegistration

class	Registration

class	ServiceRegistration

struct	TxtEntry

Public Types
enum	State { State::kIdle, State::kReady }

typedef std::vector< TxtEntry >	TxtList

typedef std::vector< std::string >	SubTypeList

typedef std::vector< Ip6Address >	AddressList

using	DiscoveredServiceInstanceCallback = std::function< void(const std::string &aType, const DiscoveredInstanceInfo &aInstanceInfo)>

using	DiscoveredHostCallback = std::function< void(const std::string &aHostName, const DiscoveredHostInfo &aHostInfo)>

using	StateCallback = std::function< void(State aNewState)>

using	ResultCallback = OnceCallback< void(otbrError aError)>

Public Member Functions
virtual otbrError	Start (void)=0

virtual void	Stop (void)=0

virtual bool	IsStarted (void) const =0

void	PublishService (const std::string &aHostName, const std::string &aName, const std::string &aType, const SubTypeList &aSubTypeList, uint16_t aPort, const TxtList &aTxtList, ResultCallback &&aCallback)

virtual void	UnpublishService (const std::string &aName, const std::string &aType, ResultCallback &&aCallback)=0

void	PublishHost (const std::string &aName, const std::vector< Ip6Address > &aAddresses, ResultCallback &&aCallback)

virtual void	UnpublishHost (const std::string &aName, ResultCallback &&aCallback)=0

virtual void	SubscribeService (const std::string &aType, const std::string &aInstanceName)=0

virtual void	UnsubscribeService (const std::string &aType, const std::string &aInstanceName)=0

virtual void	SubscribeHost (const std::string &aHostName)=0

virtual void	UnsubscribeHost (const std::string &aHostName)=0

uint64_t	AddSubscriptionCallbacks (DiscoveredServiceInstanceCallback aInstanceCallback, DiscoveredHostCallback aHostCallback)

void	RemoveSubscriptionCallbacks (uint64_t aSubscriberId)

const MdnsTelemetryInfo &	GetMdnsTelemetryInfo () const

Static Public Member Functions
static Publisher *	Create (StateCallback aCallback)

static void	Destroy (Publisher *aPublisher)

static otbrError	EncodeTxtData (const TxtList &aTxtList, std::vector< uint8_t > &aTxtData)

static otbrError	DecodeTxtData (TxtList &aTxtList, const uint8_t *aTxtData, uint16_t aTxtLength)

Protected Types
using	ServiceRegistrationPtr = std::unique_ptr< ServiceRegistration >

using	ServiceRegistrationMap = std::map< std::string, ServiceRegistrationPtr >

using	HostRegistrationPtr = std::unique_ptr< HostRegistration >

using	HostRegistrationMap = std::map< std::string, HostRegistrationPtr >

Protected Member Functions
virtual otbrError	PublishServiceImpl (const std::string &aHostName, const std::string &aName, const std::string &aType, const SubTypeList &aSubTypeList, uint16_t aPort, const TxtList &aTxtList, ResultCallback &&aCallback)=0

virtual otbrError	PublishHostImpl (const std::string &aName, const std::vector< Ip6Address > &aAddresses, ResultCallback &&aCallback)=0

virtual void	OnServiceResolveFailedImpl (const std::string &aType, const std::string &aInstanceName, int32_t aErrorCode)=0

virtual void	OnHostResolveFailedImpl (const std::string &aHostName, int32_t aErrorCode)=0

virtual otbrError	DnsErrorToOtbrError (int32_t aError)=0

void	AddServiceRegistration (ServiceRegistrationPtr &&aServiceReg)

void	RemoveServiceRegistration (const std::string &aName, const std::string &aType, otbrError aError)

ServiceRegistration *	FindServiceRegistration (const std::string &aName, const std::string &aType)

void	OnServiceResolved (const std::string &aType, const DiscoveredInstanceInfo &aInstanceInfo)

void	OnServiceResolveFailed (const std::string &aType, const std::string &aInstanceName, int32_t aErrorCode)

void	OnServiceRemoved (uint32_t aNetifIndex, const std::string &aType, const std::string &aInstanceName)

void	OnHostResolved (const std::string &aHostName, const DiscoveredHostInfo &aHostInfo)

void	OnHostResolveFailed (const std::string &aHostName, int32_t aErrorCode)

ResultCallback	HandleDuplicateServiceRegistration (const std::string &aHostName, const std::string &aName, const std::string &aType, const SubTypeList &aSubTypeList, uint16_t aPort, const TxtList &aTxtList, ResultCallback &&aCallback)

ResultCallback	HandleDuplicateHostRegistration (const std::string &aName, const std::vector< Ip6Address > &aAddresses, ResultCallback &&aCallback)

void	AddHostRegistration (HostRegistrationPtr &&aHostReg)

void	RemoveHostRegistration (const std::string &aName, otbrError aError)

HostRegistration *	FindHostRegistration (const std::string &aName)

void	UpdateServiceRegistrationEmaLatency (const std::string &aInstanceName, const std::string &aType, otbrError aError)

void	UpdateHostRegistrationEmaLatency (const std::string &aHostName, otbrError aError)

void	UpdateServiceInstanceResolutionEmaLatency (const std::string &aInstanceName, const std::string &aType, otbrError aError)

void	UpdateHostResolutionEmaLatency (const std::string &aHostName, otbrError aError)

Static Protected Member Functions
static SubTypeList	SortSubTypeList (SubTypeList aSubTypeList)

static TxtList	SortTxtList (TxtList aTxtList)

static AddressList	SortAddressList (AddressList aAddressList)

static std::string	MakeFullServiceName (const std::string &aName, const std::string &aType)

static std::string	MakeFullHostName (const std::string &aName)

static void	UpdateMdnsResponseCounters (otbr::MdnsResponseCounters &aCounters, otbrError aError)

static void	UpdateEmaLatency (uint32_t &aEmaLatency, uint32_t aLatency, otbrError aError)

Protected Attributes
ServiceRegistrationMap	mServiceRegistrations

HostRegistrationMap	mHostRegistrations

uint64_t	mNextSubscriberId = 1

std::map< uint64_t, std::pair< DiscoveredServiceInstanceCallback, DiscoveredHostCallback > >	mDiscoveredCallbacks

std::map< std::pair< std::string, std::string >, Timepoint >	mServiceRegistrationBeginTime

std::map< std::string, Timepoint >	mHostRegistrationBeginTime

std::map< std::pair< std::string, std::string >, Timepoint >	mServiceInstanceResolutionBeginTime

std::map< std::string, Timepoint >	mHostResolutionBeginTime

otbr::MdnsTelemetryInfo	mTelemetryInfo {}

Static Protected Attributes
static constexpr uint8_t	kMaxTextEntrySize = 255

Detailed Description

This interface defines the functionality of mDNS publisher.

Member Typedef Documentation

◆ DiscoveredHostCallback

using otbr::Mdns::Publisher::DiscoveredHostCallback = std::function<void(const std::string &aHostName, const DiscoveredHostInfo &aHostInfo)>

This function is called to notify a discovered host.

◆ DiscoveredServiceInstanceCallback

using otbr::Mdns::Publisher::DiscoveredServiceInstanceCallback = std::function<void(const std::string &aType, const DiscoveredInstanceInfo &aInstanceInfo)>

This function is called to notify a discovered service instance.

◆ ResultCallback

using otbr::Mdns::Publisher::ResultCallback = OnceCallback<void(otbrError aError)>

The callback for receiving the result of a operation.

◆ StateCallback

using otbr::Mdns::Publisher::StateCallback = std::function<void(State aNewState)>

The callback for receiving mDNS publisher state changes.

Member Enumeration Documentation

◆ State

enum otbr::Mdns::Publisher::State

strong

mDNS state values.

Enumerator
kIdle	Unable to publish service.
kReady	Ready to publish service.

Member Function Documentation

◆ AddSubscriptionCallbacks()

uint64_t otbr::Mdns::Publisher::AddSubscriptionCallbacks	(	Publisher::DiscoveredServiceInstanceCallback	aInstanceCallback,
		Publisher::DiscoveredHostCallback	aHostCallback
	)

This method sets the callbacks for subscriptions.

Parameters

[in]	aInstanceCallback	The callback function to receive discovered service instances.
[in]	aHostCallback	The callback function to receive discovered hosts.

Returns: The Subscriber ID for the callbacks.

◆ Create()

Publisher * otbr::Mdns::Publisher::Create ( StateCallback aCallback )

static

This function creates a mDNS publisher.

Parameters

[in] aCallback The callback for receiving mDNS publisher state changes.

Returns: A pointer to the newly created mDNS publisher.

◆ DecodeTxtData()

otbrError otbr::Mdns::Publisher::DecodeTxtData	(	Publisher::TxtList &	aTxtList,
		const uint8_t *	aTxtData,
		uint16_t	aTxtLength
	)

static

This function decodes a TXT entry list from a TXT data buffer.

The input data should be in standard DNS-SD TXT data format. See RFC 6763 for details: https://tools.ietf.org/html/rfc6763#section-6.

Parameters

[out]	aTxtList	A TXT entry list.
[in]	aTxtData	A pointer to TXT data.
[in]	aTxtLength	The TXT data length.

Return values

OTBR_ERROR_NONE	Successfully decoded the TXT data.
OTBR_ERROR_INVALID_ARGS	The `aTxtdata` has invalid TXT format.

See also: EncodeTxtData

◆ Destroy()

void otbr::Mdns::Publisher::Destroy ( Publisher * aPublisher )

static

This function destroys the mDNS publisher.

Parameters

[in] aPublisher A pointer to the publisher.

◆ EncodeTxtData()

otbrError otbr::Mdns::Publisher::EncodeTxtData	(	const TxtList &	aTxtList,
		std::vector< uint8_t > &	aTxtData
	)

static

This function writes the TXT entry list to a TXT data buffer. The TXT entries will be sorted by their keys.

The output data is in standard DNS-SD TXT data format. See RFC 6763 for details: https://tools.ietf.org/html/rfc6763#section-6.

Parameters

[in]	aTxtList	A TXT entry list.
[out]	aTxtData	A TXT data buffer.

Return values

OTBR_ERROR_NONE	Successfully write the TXT entry list.
OTBR_ERROR_INVALID_ARGS	The `aTxtList` includes invalid TXT entry.

See also: DecodeTxtData

◆ GetMdnsTelemetryInfo()

const MdnsTelemetryInfo& otbr::Mdns::Publisher::GetMdnsTelemetryInfo ( ) const

inline

This method returns the mDNS statistics information of the publisher.

Returns: The MdnsTelemetryInfo of the publisher.

◆ IsStarted()

virtual bool otbr::Mdns::Publisher::IsStarted ( void ) const

pure virtual

This method checks if publisher has been started.

Return values

true	Already started.
false	Not started.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ PublishHost()

void otbr::Mdns::Publisher::PublishHost	(	const std::string &	aName,
		const std::vector< Ip6Address > &	aAddresses,
		ResultCallback &&	aCallback
	)

This method publishes or updates a host.

Publishing a host is advertising an AAAA RR for the host name. This method should be called before a service with non-empty host name is published.

Parameters

[in]	aName	The name of the host.
[in]	aAddresses	The addresses of the host.
[in]	aCallback	The callback for receiving the publishing result.`OTBR_ERROR_NONE` will be returned if the operation is successful and all other values indicate a failure. Specifically, `OTBR_ERROR_DUPLICATED` indicates that the name has already been published and the caller can re-publish with a new name if an alternative name is available/acceptable.

◆ PublishService()

void otbr::Mdns::Publisher::PublishService	(	const std::string &	aHostName,
		const std::string &	aName,
		const std::string &	aType,
		const SubTypeList &	aSubTypeList,
		uint16_t	aPort,
		const TxtList &	aTxtList,
		ResultCallback &&	aCallback
	)

This method publishes or updates a service.

Parameters

[in]	aHostName	The name of the host which this service resides on. If an empty string is provided, this service resides on local host and it is the implementation to provide specific host name. Otherwise, the caller MUST publish the host with method PublishHost.
[in]	aName	The name of this service.
[in]	aType	The type of this service.
[in]	aSubTypeList	A list of service subtypes.
[in]	aPort	The port number of this service.
[in]	aTxtList	A list of TXT name/value pairs.
[in]	aCallback	The callback for receiving the publishing result. `OTBR_ERROR_NONE` will be returned if the operation is successful and all other values indicate a failure. Specifically, `OTBR_ERROR_DUPLICATED` indicates that the name has already been published and the caller can re-publish with a new name if an alternative name is available/acceptable.

◆ RemoveSubscriptionCallbacks()

void otbr::Mdns::Publisher::RemoveSubscriptionCallbacks ( uint64_t aSubscriberId )

This method cancels callbacks for subscriptions.

Parameters

[in] aSubscriberId The Subscriber ID previously returned by AddSubscriptionCallbacks.

◆ Start()

virtual otbrError otbr::Mdns::Publisher::Start ( void )

pure virtual

This method starts the mDNS publisher.

Return values

OTBR_ERROR_NONE	Successfully started mDNS publisher;
OTBR_ERROR_MDNS	Failed to start mDNS publisher.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ Stop()

virtual void otbr::Mdns::Publisher::Stop ( void )

pure virtual

This method stops the mDNS publisher.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ SubscribeHost()

virtual void otbr::Mdns::Publisher::SubscribeHost ( const std::string & aHostName )

pure virtual

This method subscribes a given host.

mDNS implementations should use the DiscoveredHostCallback function to notify discovered hosts.

Note: Discovery Proxy implementation guarantees no duplicate subscriptions for the same host.

Parameters

[in] aHostName The host name (without domain).

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ SubscribeService()

virtual void otbr::Mdns::Publisher::SubscribeService	(	const std::string &	aType,
		const std::string &	aInstanceName
	)

pure virtual

This method subscribes a given service or service instance.

If aInstanceName is not empty, this method subscribes the service instance. Otherwise, this method subscribes the service. mDNS implementations should use the DiscoveredServiceInstanceCallback function to notify discovered service instances.

Note: Discovery Proxy implementation guarantees no duplicate subscriptions for the same service or service instance.

Parameters

[in]	aType	The service type.
[in]	aInstanceName	The service instance to subscribe, or empty to subscribe the service.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ UnpublishHost()

virtual void otbr::Mdns::Publisher::UnpublishHost	(	const std::string &	aName,
		ResultCallback &&	aCallback
	)

pure virtual

This method un-publishes a host.

Parameters

[in]	aName	A host name.
[in]	aCallback	The callback for receiving the publishing result.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ UnpublishService()

virtual void otbr::Mdns::Publisher::UnpublishService	(	const std::string &	aName,
		const std::string &	aType,
		ResultCallback &&	aCallback
	)

pure virtual

This method un-publishes a service.

Parameters

[in]	aName	The name of this service.
[in]	aType	The type of this service.
[in]	aCallback	The callback for receiving the publishing result.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ UnsubscribeHost()

virtual void otbr::Mdns::Publisher::UnsubscribeHost ( const std::string & aHostName )

pure virtual

This method unsubscribes a given host.

Note: Discovery Proxy implementation guarantees no redundant unsubscription for a host.

Parameters

[in] aHostName The host name (without domain).

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

◆ UnsubscribeService()

virtual void otbr::Mdns::Publisher::UnsubscribeService	(	const std::string &	aType,
		const std::string &	aInstanceName
	)

pure virtual

This method unsubscribes a given service or service instance.

If aInstanceName is not empty, this method unsubscribes the service instance. Otherwise, this method unsubscribes the service.

Note: Discovery Proxy implementation guarantees no redundant unsubscription for a service or service instance.

Parameters

[in]	aType	The service type.
[in]	aInstanceName	The service instance to unsubscribe, or empty to unsubscribe the service.

Implemented in otbr::Mdns::PublisherAvahi, and otbr::Mdns::PublisherMDnsSd.

The documentation for this class was generated from the following files:

src/mdns/mdns.hpp
src/mdns/mdns.cpp
src/mdns/mdns_avahi.cpp
src/mdns/mdns_mdnssd.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

◆ DiscoveredHostCallback

◆ DiscoveredServiceInstanceCallback

◆ ResultCallback

◆ StateCallback

Member Enumeration Documentation

◆ State

Member Function Documentation

◆ AddSubscriptionCallbacks()

◆ Create()

◆ DecodeTxtData()

◆ Destroy()

◆ EncodeTxtData()

◆ GetMdnsTelemetryInfo()

◆ IsStarted()

◆ PublishHost()

◆ PublishService()

◆ RemoveSubscriptionCallbacks()

◆ Start()

◆ Stop()

◆ SubscribeHost()

◆ SubscribeService()

◆ UnpublishHost()

◆ UnpublishService()

◆ UnsubscribeHost()

◆ UnsubscribeService()
