#include <src/mdns/mdns_mdnssd.hpp>

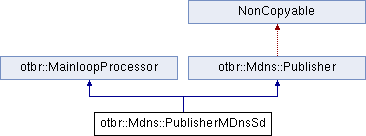

Inheritance diagram for otbr::Mdns::PublisherMDnsSd:

Public Member Functions
	PublisherMDnsSd (StateCallback aCallback)

void	UnpublishService (const std::string &aName, const std::string &aType, ResultCallback &&aCallback) override

void	UnpublishHost (const std::string &aName, ResultCallback &&aCallback) override

void	SubscribeService (const std::string &aType, const std::string &aInstanceName) override

void	UnsubscribeService (const std::string &aType, const std::string &aInstanceName) override

void	SubscribeHost (const std::string &aHostName) override

void	UnsubscribeHost (const std::string &aHostName) override

otbrError	Start (void) override

bool	IsStarted (void) const override

void	Stop (void) override

void	Update (MainloopContext &aMainloop) override

void	Process (const MainloopContext &aMainloop) override

Public Member Functions inherited from otbr::Mdns::Publisher
void	PublishService (const std::string &aHostName, const std::string &aName, const std::string &aType, const SubTypeList &aSubTypeList, uint16_t aPort, const TxtList &aTxtList, ResultCallback &&aCallback)

void	PublishHost (const std::string &aName, const std::vector< Ip6Address > &aAddresses, ResultCallback &&aCallback)

uint64_t	AddSubscriptionCallbacks (DiscoveredServiceInstanceCallback aInstanceCallback, DiscoveredHostCallback aHostCallback)

void	RemoveSubscriptionCallbacks (uint64_t aSubscriberId)

const MdnsTelemetryInfo &	GetMdnsTelemetryInfo () const

Protected Member Functions
otbrError	PublishServiceImpl (const std::string &aHostName, const std::string &aName, const std::string &aType, const SubTypeList &aSubTypeList, uint16_t aPort, const TxtList &aTxtList, ResultCallback &&aCallback) override

otbrError	PublishHostImpl (const std::string &aName, const std::vector< Ip6Address > &aAddress, ResultCallback &&aCallback) override

void	OnServiceResolveFailedImpl (const std::string &aType, const std::string &aInstanceName, int32_t aErrorCode) override

void	OnHostResolveFailedImpl (const std::string &aHostName, int32_t aErrorCode) override

otbrError	DnsErrorToOtbrError (int32_t aErrorCode) override

Protected Member Functions inherited from otbr::Mdns::Publisher
void	AddServiceRegistration (ServiceRegistrationPtr &&aServiceReg)

void	RemoveServiceRegistration (const std::string &aName, const std::string &aType, otbrError aError)

ServiceRegistration *	FindServiceRegistration (const std::string &aName, const std::string &aType)

void	OnServiceResolved (const std::string &aType, const DiscoveredInstanceInfo &aInstanceInfo)

void	OnServiceResolveFailed (const std::string &aType, const std::string &aInstanceName, int32_t aErrorCode)

void	OnServiceRemoved (uint32_t aNetifIndex, const std::string &aType, const std::string &aInstanceName)

void	OnHostResolved (const std::string &aHostName, const DiscoveredHostInfo &aHostInfo)

void	OnHostResolveFailed (const std::string &aHostName, int32_t aErrorCode)

ResultCallback	HandleDuplicateServiceRegistration (const std::string &aHostName, const std::string &aName, const std::string &aType, const SubTypeList &aSubTypeList, uint16_t aPort, const TxtList &aTxtList, ResultCallback &&aCallback)

ResultCallback	HandleDuplicateHostRegistration (const std::string &aName, const std::vector< Ip6Address > &aAddresses, ResultCallback &&aCallback)

void	AddHostRegistration (HostRegistrationPtr &&aHostReg)

void	RemoveHostRegistration (const std::string &aName, otbrError aError)

HostRegistration *	FindHostRegistration (const std::string &aName)

void	UpdateServiceRegistrationEmaLatency (const std::string &aInstanceName, const std::string &aType, otbrError aError)

void	UpdateHostRegistrationEmaLatency (const std::string &aHostName, otbrError aError)

void	UpdateServiceInstanceResolutionEmaLatency (const std::string &aInstanceName, const std::string &aType, otbrError aError)

void	UpdateHostResolutionEmaLatency (const std::string &aHostName, otbrError aError)

Additional Inherited Members
Public Types inherited from otbr::Mdns::Publisher
enum	State { State::kIdle, State::kReady }

typedef std::vector< TxtEntry >	TxtList

typedef std::vector< std::string >	SubTypeList

typedef std::vector< Ip6Address >	AddressList

using	DiscoveredServiceInstanceCallback = std::function< void(const std::string &aType, const DiscoveredInstanceInfo &aInstanceInfo)>

using	DiscoveredHostCallback = std::function< void(const std::string &aHostName, const DiscoveredHostInfo &aHostInfo)>

using	StateCallback = std::function< void(State aNewState)>

using	ResultCallback = OnceCallback< void(otbrError aError)>

Static Public Member Functions inherited from otbr::Mdns::Publisher
static Publisher *	Create (StateCallback aCallback)

static void	Destroy (Publisher *aPublisher)

static otbrError	EncodeTxtData (const TxtList &aTxtList, std::vector< uint8_t > &aTxtData)

static otbrError	DecodeTxtData (TxtList &aTxtList, const uint8_t *aTxtData, uint16_t aTxtLength)

Protected Types inherited from otbr::Mdns::Publisher
using	ServiceRegistrationPtr = std::unique_ptr< ServiceRegistration >

using	ServiceRegistrationMap = std::map< std::string, ServiceRegistrationPtr >

using	HostRegistrationPtr = std::unique_ptr< HostRegistration >

using	HostRegistrationMap = std::map< std::string, HostRegistrationPtr >

Static Protected Member Functions inherited from otbr::Mdns::Publisher
static SubTypeList	SortSubTypeList (SubTypeList aSubTypeList)

static TxtList	SortTxtList (TxtList aTxtList)

static AddressList	SortAddressList (AddressList aAddressList)

static std::string	MakeFullServiceName (const std::string &aName, const std::string &aType)

static std::string	MakeFullHostName (const std::string &aName)

static void	UpdateMdnsResponseCounters (otbr::MdnsResponseCounters &aCounters, otbrError aError)

static void	UpdateEmaLatency (uint32_t &aEmaLatency, uint32_t aLatency, otbrError aError)

Protected Attributes inherited from otbr::Mdns::Publisher
ServiceRegistrationMap	mServiceRegistrations

HostRegistrationMap	mHostRegistrations

uint64_t	mNextSubscriberId = 1

std::map< uint64_t, std::pair< DiscoveredServiceInstanceCallback, DiscoveredHostCallback > >	mDiscoveredCallbacks

std::map< std::pair< std::string, std::string >, Timepoint >	mServiceRegistrationBeginTime

std::map< std::string, Timepoint >	mHostRegistrationBeginTime

std::map< std::pair< std::string, std::string >, Timepoint >	mServiceInstanceResolutionBeginTime

std::map< std::string, Timepoint >	mHostResolutionBeginTime

otbr::MdnsTelemetryInfo	mTelemetryInfo {}

Static Protected Attributes inherited from otbr::Mdns::Publisher
static constexpr uint8_t	kMaxTextEntrySize = 255

Detailed Description

This class implements mDNS publisher with mDNSResponder.

Member Function Documentation

◆ IsStarted()

bool otbr::Mdns::PublisherMDnsSd::IsStarted ( void ) const

overridevirtual

This method checks if publisher has been started.

Return values

true	Already started.
false	Not started.

Implements otbr::Mdns::Publisher.

◆ Process()

void otbr::Mdns::PublisherMDnsSd::Process ( const MainloopContext & aMainloop )

overridevirtual

This method processes mainloop events.

Parameters

[in] aMainloop A reference to the mainloop context.

Implements otbr::MainloopProcessor.

◆ Start()

otbrError otbr::Mdns::PublisherMDnsSd::Start ( void )

overridevirtual

This method starts the mDNS publisher.

Return values

OTBR_ERROR_NONE	Successfully started mDNS publisher;
OTBR_ERROR_MDNS	Failed to start mDNS publisher.

Implements otbr::Mdns::Publisher.

◆ Stop()

void otbr::Mdns::PublisherMDnsSd::Stop ( void )

overridevirtual

This method stops the mDNS publisher.

Implements otbr::Mdns::Publisher.

◆ SubscribeHost()

void otbr::Mdns::PublisherMDnsSd::SubscribeHost ( const std::string & aHostName )

overridevirtual

This method subscribes a given host.

mDNS implementations should use the DiscoveredHostCallback function to notify discovered hosts.

Note: Discovery Proxy implementation guarantees no duplicate subscriptions for the same host.

Parameters

[in] aHostName The host name (without domain).

Implements otbr::Mdns::Publisher.

◆ SubscribeService()

void otbr::Mdns::PublisherMDnsSd::SubscribeService	(	const std::string &	aType,
		const std::string &	aInstanceName
	)

overridevirtual

This method subscribes a given service or service instance.

If aInstanceName is not empty, this method subscribes the service instance. Otherwise, this method subscribes the service. mDNS implementations should use the DiscoveredServiceInstanceCallback function to notify discovered service instances.

Note: Discovery Proxy implementation guarantees no duplicate subscriptions for the same service or service instance.

Parameters

[in]	aType	The service type.
[in]	aInstanceName	The service instance to subscribe, or empty to subscribe the service.

Implements otbr::Mdns::Publisher.

◆ UnpublishHost()

void otbr::Mdns::PublisherMDnsSd::UnpublishHost	(	const std::string &	aName,
		ResultCallback &&	aCallback
	)

overridevirtual

This method un-publishes a host.

Parameters

[in]	aName	A host name.
[in]	aCallback	The callback for receiving the publishing result.

Implements otbr::Mdns::Publisher.

◆ UnpublishService()

void otbr::Mdns::PublisherMDnsSd::UnpublishService	(	const std::string &	aName,
		const std::string &	aType,
		ResultCallback &&	aCallback
	)

overridevirtual

This method un-publishes a service.

Parameters

[in]	aName	The name of this service.
[in]	aType	The type of this service.
[in]	aCallback	The callback for receiving the publishing result.

Implements otbr::Mdns::Publisher.

◆ UnsubscribeHost()

void otbr::Mdns::PublisherMDnsSd::UnsubscribeHost ( const std::string & aHostName )

overridevirtual

This method unsubscribes a given host.

Note: Discovery Proxy implementation guarantees no redundant unsubscription for a host.

Parameters

[in] aHostName The host name (without domain).

Implements otbr::Mdns::Publisher.

◆ UnsubscribeService()

void otbr::Mdns::PublisherMDnsSd::UnsubscribeService	(	const std::string &	aType,
		const std::string &	aInstanceName
	)

overridevirtual

This method unsubscribes a given service or service instance.

If aInstanceName is not empty, this method unsubscribes the service instance. Otherwise, this method unsubscribes the service.

Note: Discovery Proxy implementation guarantees no redundant unsubscription for a service or service instance.

Parameters

[in]	aType	The service type.
[in]	aInstanceName	The service instance to unsubscribe, or empty to unsubscribe the service.

Implements otbr::Mdns::Publisher.

◆ Update()

void otbr::Mdns::PublisherMDnsSd::Update ( MainloopContext & aMainloop )

overridevirtual

This method updates the mainloop context.

Parameters

[in,out] aMainloop A reference to the mainloop to be updated.

Implements otbr::MainloopProcessor.

The documentation for this class was generated from the following files:

src/mdns/mdns_mdnssd.hpp
src/mdns/mdns_mdnssd.cpp
